It’s gotten easy to publish web applications to the cloud, but the last thing you want to do is establish unique authentication schemes for each one. At some point, your users will be stuck with a mountain of passwords, or, end up reusing passwords everywhere. Not good. Instead, what about extending your existing corporate identity directory to the cloud for all applications to use? Fortunately, Microsoft Active Directory can be extended to support authentication/authorization for web applications deployed in ANY cloud platform. In this post, I’ll show you how to configure Active Directory Federation Services (ADFS) to authenticate the users of a Node.js application hosted in Windows Azure Web Sites and deployed via Dropbox.
[Note: I was going to also show how to do this with an ASP.NET application since the new “Identity and Access” tools in Visual Studio 2012 make it really easy to use AD FS to authenticate users. However because of the passive authentication scheme Windows Identity Foundation uses in this scenario, the ASP.NET application has to be secured by SSL/TLS. Windows Azure Web Sites doesn’t support HTTPS (yet), and getting HTTPS working in Windows Azure Cloud Services isn’t trivial. So, we’ll save that walkthrough for another day.]
Configuring Active Directory Federation Services for our application

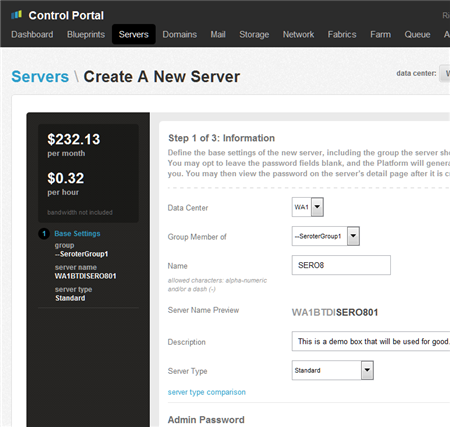

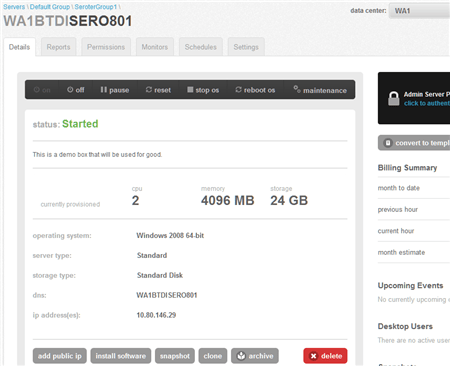

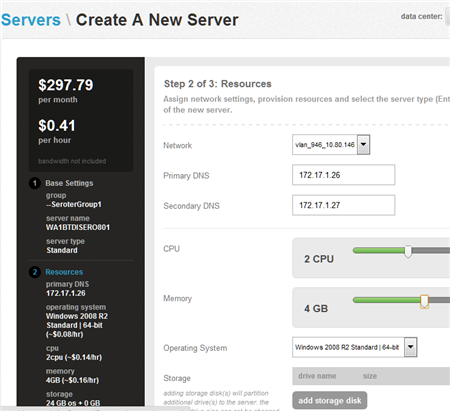

First off, I created a server that had DNS services and Active Directory installed. This server sits in the Tier 3 cloud and I used our orchestration engine to quickly build up a box with all the required services. Check out this KB article I wrote for Tier 3 on setting up an Active Directory and AD FS server from scratch.
AD FS is a service that supports identity federation and supports industry standards like SAML for authenticating users. It returns claims about the authenticated user. In AD FS, you’ve got endpoints that define which inbound authentication schemes are supported (like WS-Trust or SAML), certificates for signing tokens and securing transmissions, and relying parties which represent the endpoints that AD FS has a trust relationship with.

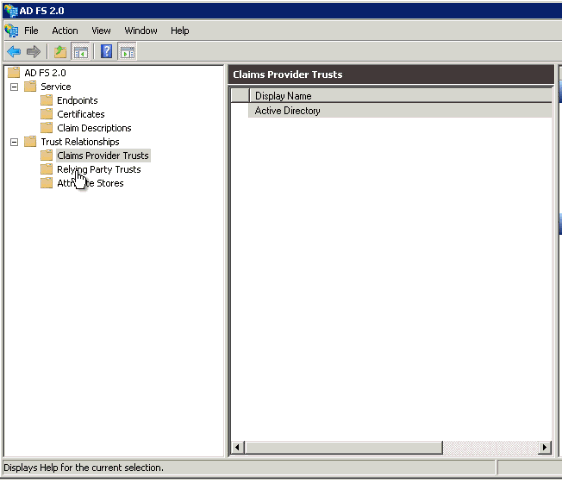

In our case, I needed to enabled an active endpoint for my Node.js application to authenticate against, and one new relying party. First, I created a new relying party that referenced the yet-to-be-created URL of my Azure-hosted web site. In the animation below, see the simple steps I followed to create it. Note that because I’m doing active (vs. passive) authentication, there’s no endpoint to redirect to, and very few overall required settings.
With the relying party finished, I could now add the claim rules. These tell AD FS what claims about the authenticated user to send back to the caller.

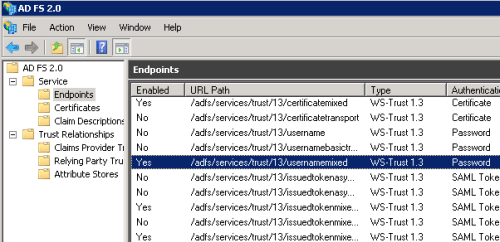

At this point, AD FS was fully configured and able to authenticate my remote application. The final thing to do was enable the appropriate authentication endpoint. By default, the password-based WS-Trust endpoint is disabled, so I flipped it on so that I could pass username+password credentials to AD FS and authenticate a user.
Connecting a Node.js application to AD FS
Next, I used the JetBrains WebStorm IDE to build a Node.js application based on the Express framework. This simple application takes in a set of user credentials, and attempts to authenticate those credentials against AD FS. If successful, the application displays all the Active Directory Groups that the user belongs to. This information could be used to provide a unique application experience based on the role of the user. The initial page of the web application takes in the user’s credentials.
div.content
h1= title
form(action='/profile', method='POST')
table
tr
td
label(for='user') User
td
input(id='user', type='text', name='user')
tr
td
label(for='password') Password
td
input(id='password', type='password', name='password')
tr
td(colspan=2)
input(type='submit', value='Log In')
This page posts to a Node.js route (controller) that is responsible passing those credentials to AD FS. How do we talk to AD FS through the WS-Trust format? Fortunately, Leandro Boffi wrote up a simple Node.js module that does just that. I grabbed the wstrust-client module and added it to my Node.js project. The WS-Trust authentication response comes back as XML, so I also added a Node.js module to convert XML to JSON for easier parsing. My route code looked like this:
//for XML parsing
var xml2js = require('xml2js');
var https = require('https');
//to process WS-Trust requests
var trustClient = require('wstrust-client');
exports.details = function(req, res){
var userName = req.body.user;
var userPassword = req.body.password;
//call endpoint, and pass in values
trustClient.requestSecurityToken({
scope: 'http://seroternodeadfs.azurewebsites.net',
username: userName,
password: userPassword,
endpoint: 'https://[AD FS server IP address]/adfs/services/trust/13/UsernameMixed'
}, function (rstr) {
// Access the token
var rawToken = rstr.token;
console.log('raw: ' + rawToken);
//convert to json
var parser = new xml2js.Parser;
parser.parseString(rawToken, function(err, result){
//grab "user" object
var user = result.Assertion.AttributeStatement[0].Attribute[0].AttributeValue[0];
//get all "roles"
var roles = result.Assertion.AttributeStatement[0].Attribute[1].AttributeValue;
console.log(user);
console.log(roles);
//render the page and pass in the user and roles values
res.render('profile', {title: 'User Profile', username: user, userroles: roles});
});
}, function (error) {
// Error Callback
console.log(error)
});
};
See that I’m providing a “scope” (which maps to the relying party identifier), an endpoint (which is the public location of my AD FS server), and the user-provided credentials to the WS-Trust module. I then parse the results to grab the friendly name and roles of the authenticated user. Finally, the “profile” page takes the values that it’s given and renders the information.
div.content
h1 #{title} for #{username}
br
div
div.roleheading User Roles
ul
each userrole in userroles
li= userrole
My application was complete and ready for deployment to Windows Azure.
Publishing the Node.js application to Windows Azure
Windows Azure Web Sites offer a really nice and easy way to host applications written in a variety of languages. It also supports a variety of ways to push code, including Git, GitHub, Team Foundation Service, Codeplex, and Dropbox. For simplicity sake (and because I hadn’t tried it yet), I chose to deploy via Dropbox.
However, first I had to create my Windows Azure Web Site. I made sure to use the same name that I had specified in my AD FS relying party.

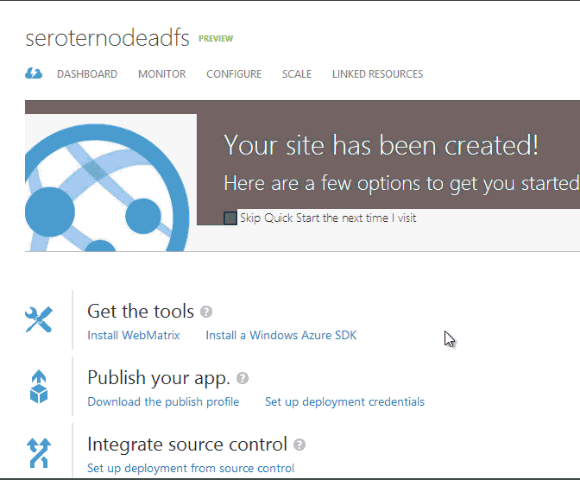

Once the Web Site is set up (which takes only a few seconds), I could connect it to a source control repository.

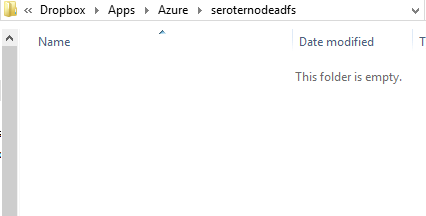

After a couple moments, a new folder hierarchy appeared in my Dropbox.

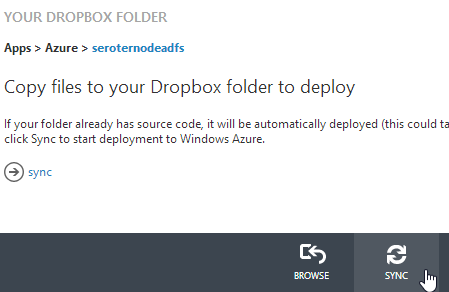

I copied all the Node.js application source files into this folder. I then returned to the Windows Azure Management Portal and chose to Sync my Dropbox folder with my Windows Azure Web Site.

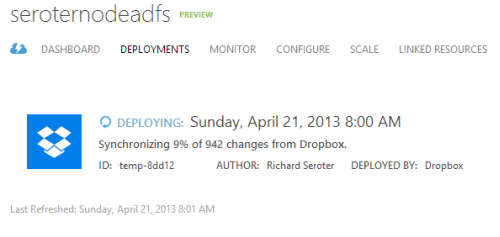

Right away it starts synchronizing the application files. Windows Azure does a nice job of tracking my deployments and showing the progress.
In about a minute, my application was uploaded and ready to test.
Testing the application

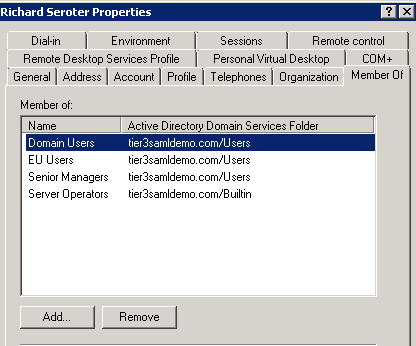

The whole point of this application is to authenticate a user and return their Active Directory role collection. I created a “Richard Seroter” user in my Active Directory and put that user in a few different Active Directory Groups.
I then browsed to my Windows Azure Website URL and was presented with my Node.js application interface.
I plugged in my credentials and was immediately presented with the list of corresponding Active Directory user group membership information.
Summary
That was fun. AD FS is a fantastic way to extend your on-premises directory to applications hosted outside of your corporate network. In this case, we saw how to create Node.js application that authenticated users against AD FS. While I deployed this sample application to Windows Azure Web Sites, I could have deployed this to ANY cloud that supports Node.js. Imagine having applications written in virtually any language, and hosted in any cloud, all using a single authentication endpoint. Powerful stuff!
